600 Amp Hour – 1200 Watt Camper Van Solar Kit

This DIY Camper Van Solar Kit features 1200 watts of solar (4x300w Panels) and 600 Amp Hours of Lithium Batteries wired into a 12v battery bank. It also features a 2000w Inverter/Charger and alternator charging by way of a battery isolator.

THERE IS AN UPDATE TO THIS WIRING DIAGRAM THAT INCLUDES A DC-DC CHARGER AND A BUSBAR SYSTEM THAT DOES NOT REQUIRE CUTTING & DRILLING OF COPPER BAR. HERE IS THE LINK FOR THAT: https://www.explorist.life/2000w-inverter-200-400ah-lithium-200-to-700w-solar-camper-wiring-diagram/

Looking for a different size of system? Check here: https://www.explorist.life/solarwiringdiagrams

Not sure how big of a system you need? You need to do a power audit. Here’s a tutorial: https://www.explorist.life/what-size-of-solar-system-is-needed-to-power-a-camper/

Want more solar education in general? Check this: https://www.explorist.life/diy-campervan-solar

Want a high-resolution wiring diagram to print out? Get it here:

Here is a video that shows how this page works:

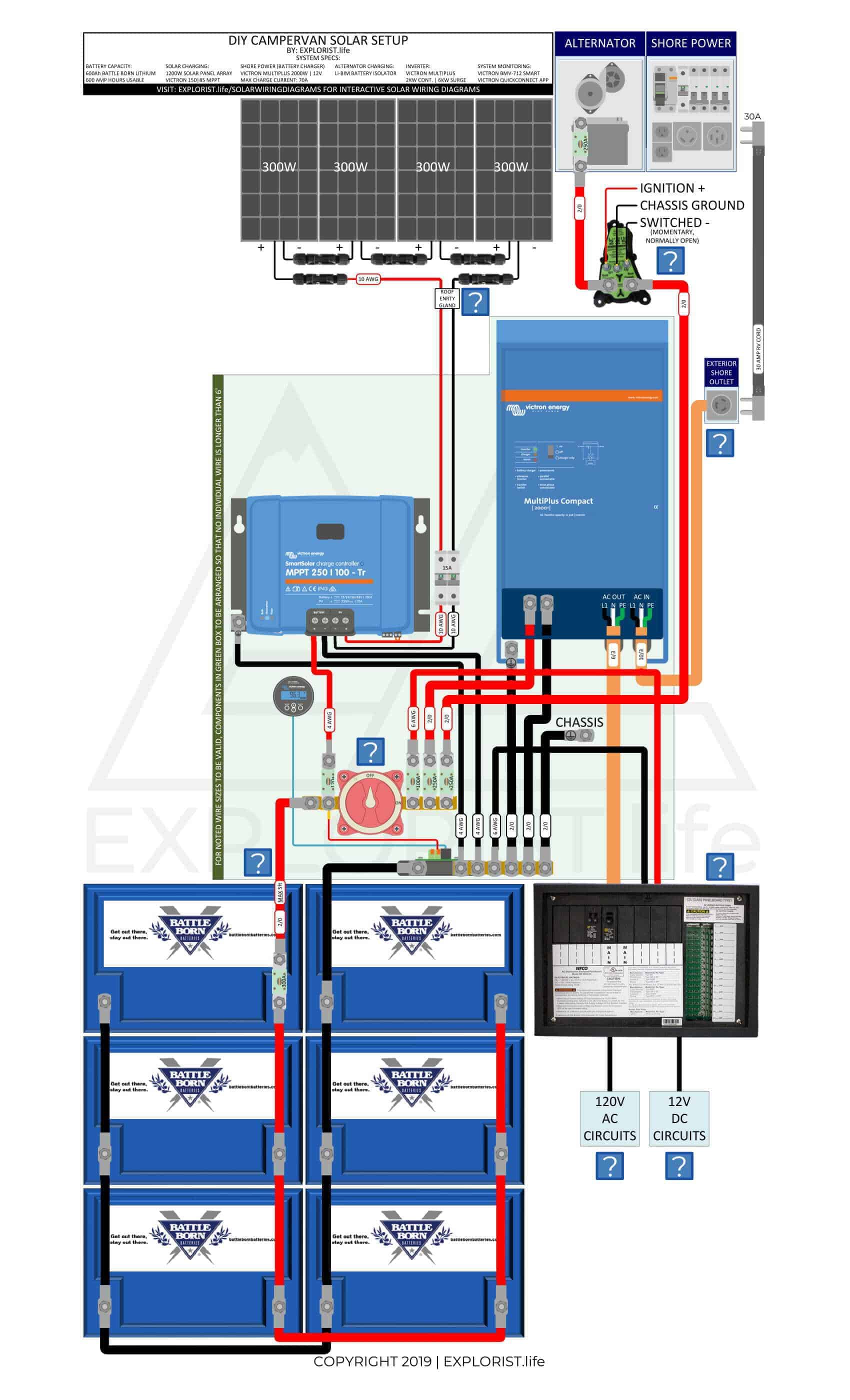

600Ah Lithium Battery Bank – 4x300W Solar – 2kW Inverter/Charger – Li-BIM Alternator Charging
EXPLORIST.life / Battle Born Solar Bundle [Affiliate Link] 300W Solar Panels [Affiliate Link] 120A ANL Fuse [Affiliate Link] Roof Entry Gland [Affiliate Link] 100A ANL Fuse [Affiliate Link] 250A ANL Fuse [Affiliate Link] 250A ANL Fuse [Affiliate Link] 15A Solar Disconnect [Affiliate Link] Master Battery Disconnect Switch [Affiliate Link] Exterior Shore Power Outlet [Affiliate Link] 250A Terminal Fuse [Affiliate Link] 300A Terminal Fuse [Affiliate Link] 30 A Shore Power Cord [Affiliate Link] 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 4 AWG x 5/16 Wire Lug 6 AWG x 5/16 Wire Lug 4 AWG x 5/16 Wire Lug 4 AWG x 5/16 Wire Lug 6 AWG x 5/16 Wire Lug 4 AWG x 5/16 Wire Lug Tutorial: How to Wire the Li-BIM Battery Isolator Tutorial: How to Wire the AC Side of Your Electrical System Tutorial: How to Wire for Shore Power Tutorial: How to Wire a Battery Bank Tutorial: How to Wire a Busbar Tutorial: How To Wire DC Distribution Block & Accessories Tutorial: How to wire a power distribution panel

EXPLORIST.life / Battle Born Solar Bundle [Affiliate Link]

Battery, Inverter, Charge Controller, Battery Monitor Discount Bundle Coming June 1.

300W Solar Panels [Affiliate Link]

120A ANL Fuse [Affiliate Link]

Roof Entry Gland [Affiliate Link]

100A ANL Fuse [Affiliate Link]

250A ANL Fuse [Affiliate Link]

250A ANL Fuse [Affiliate Link]

15A Solar Disconnect [Affiliate Link]

Master Battery Disconnect Switch [Affiliate Link]

Exterior Shore Power Outlet [Affiliate Link]

250A Terminal Fuse [Affiliate Link]

300A Terminal Fuse [Affiliate Link]

30 A Shore Power Cord [Affiliate Link]

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

4 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

6 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

4 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

4 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

6 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

4 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

Tutorial: How to Wire the Li-BIM Battery Isolator

Tutorial: How to Wire the AC Side of Your Electrical System

Tutorial: How to Wire for Shore Power

Tutorial: How to Wire a Battery Bank

Tutorial: How to Wire a Busbar

Tutorial: How To Wire DC Distribution Block & Accessories

Tutorial: How to wire a power distribution panel

IMPORTANT!!! This diagram is, indeed, pretty detailed. YOU MUST STILL READ AND FOLLOW YOUR USER/INSTALLATION MANUAL WHEN INSTALLING THIS EQUIPMENT. In case of an error in the diagram above, your user manual will always superscede the diagram you see on this page.

Known issues with the diagram above:

  • The shunt in the diagram is backwards. On the side of the shunt, there is a label that says which side goes to the battery and which side goes to the load. Please follow the orientation on the side of the shunt.
  • The shore power cord has a male plug on both ends. Shore power extension cords do not have male plugs on each end. This would be incredibly dangerous. Please do not splice a shore power cord so there is a male on each end. The shore power cord in the parts list below is accurate and has a male end on one side and a female end on the other.
EXPLORIST.life Battery, Charge Controller, Inverter Bundle
Solar Charging System:
  • Qty: 1 – 300 Watt Solar Panel – 4 Pack
    • Put these in the sun
  • Qty: 1 – Solar Panel Mounting Feet
    • Help mount solar panels to the roof
  • Qty: 1 – MC4 Connectors
    • Connecting Solar Panels to Wires going to Charge Controller
  • Qty: 40 – 10 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Solar Panel to Charge Controller
  • Qty: 40 – 10 AWG Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Solar Panel to Charge Controller
  • Qty: 1 – Roof Entry Gland
    • Waterproof Box for Running Wires through Roof
  • Qty: 1 – 1″ Wire Grommet
    • Mounted in roof under Roof Entry Gland
  • Qty: 1 – 15 Amp Solar Disconnect Switch
    • Mounted on Din Rail Between Solar Panels & Solar Contoller
  • Qty: 1 – Din Rail
    • To mount the Solar Disconnect Switch
  • Qty: 1 – Victron Smartsolar MPPT 250 | 100 – Bundle
    • Included in Bundle at Top of List
    • Solar Charge Controller
  • Qty: 5 – 4 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Charge Controller to Busbar
  • Qty: 5 – 4 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Charge Controller Equipment Ground
  • Qty: 5 – 4 AWG Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Charge Controller to Busbar
  • Qty: 2 – 5/16″ x 4 AWG Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Positive & Negative Wires from Charge Controller to Busbar
  • Qty: 2 – 5/16″ x 4 AWG Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Connecting Busbar to Charge Controller Equipment Ground
  • Qty: 1 – 120 Amp ANL Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Positive Busbar Protecting Red Wire to Charge Controller
  • Qty: 1 – ANL Fuse Holder
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Mounted to Busbar under each ANL fuse
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Battery Bank, Busbar, & Inverter
  • Qty: 1 – 2000W Victron MultiPlus Compact Inverter Charger 12V – Bundle
    • Included in Bundle at Top of List
    • This Converts Your 12v DC Power to 120v AC Power
  • Qty: 1 – 600Ah Battle Born Lithium Battery Bundle
    • Included in Bundle at Top of List
    • These Store Your Power
  • Qty: 8 – 2/0 Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Batteries & From Batteries to Busbar
  • Qty: 8 – 2/0 Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Batteries & From Batteries to Busbar
  • Qty: 24 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Wires to Batteries & to Busbar
  • Qty: 1 – 300 Amp Terminal Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attached to Battery Protecting Red Wire to Busbar
  • Qty: 5 – 2/0 Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Inverter
  • Qty: 5 – 2/0 Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Inverter
  • Qty: 5 – 2/0 Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Inverter Equipment Ground
  • Qty: 5 – 2/0 Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Chassis Ground
  • Qty: 2 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Positive Wire from Busbar to Inverter
  • Qty: 2 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Negative Wire from Busbar to Inverter
  • Qty: 2 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Black Wire from Negative Busbar to Inverter Equipment Ground
  • Qty: 2 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Black Wire from Negative Busbar to Vehicle Chassis Ground
  • Qty: 1 – 250 Amp ANL Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Positive Busbar Protecting Red Wire to Inverter
  • Qty: 1 – ANL Fuse Holder
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Mounted to Busbar under each ANL fuse
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

DC Busbar
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

AC Circuits & Shore Power
  • Qty: 1 – 30 Amp Shore Power Cord
    • Connecting 30A Flanged Power Inlet to Shore Power
  • Qty: 1 – 30 Amp Shore Power Extension Cord
    • If your Shore Power Cord is too Short
  • Qty: 1 – 30A to 15A Adapter
    • For plugging your 30A shore power cord into a 15/20 amp standard outlet.
  • Qty: 1 – 30A Flanged Power Inlet
    • Connected to Outside of Camper
  • Qty: 10 – 10 AWG 3 Conductor Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From 30A Flanged Power Inlet to Inverter
  • Qty: 5 – 6 AWG 3 Conductor Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Inverter to Power Distribution Panel
  • Qty: 1 – Power Distribution Panel
    • For Distributing Power & Housing Breakers/Fuses
  • Qty: 1 – 50A AC Breaker
    • Check Wire, Lug, and Fuse List at Bottom of List
    • For AC Branch Circuits
  • Qty: 1 – 20A HOMT Tandem AC Breaker
    • Check Wire, Lug, and Fuse List at Bottom of List
    • For Standard 120V Outlet Circuits
  • Qty: 1 – 20A / 30A HOMT Tandem AC Breaker
    • Check Wire, Lug, and Fuse List at Bottom of List
    • For Circuits that include large loads (hot water heater)
  • Qty: 50 – 12 AWG 3 Conductor Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • For AC Branch Circuits
  • Qty: 6 – 120V GFCI Outlet
    • For plugging 120V Appliances into
  • Qty: 6 – Single Gang Electrical Box
    • For 120V GFCI Outlet
  • Qty: 6 – GFCI Wall Plates
    • For 120V GFCI Outlet
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

12v Distribution
  • Qty: 1 – Power Distribution Panel
    • For Distributing Power & Housing Breakers/Fuses
  • Qty: 1 – 100 AMP ANL Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Positive Busbar Protecting Red Wire to the Power Distribution Panel
  • Qty: 1 – ANL Fuse Holder
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Mounted to Busbar under each ANL fuse
  • Qty: 2 – 5/16″ x 6 AWG Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Positive & Negatives Wires to the Busbar from the Power Distribution Panel
  • Qty: 5 – 6 AWG Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Positive Wire From Busbar to Power Distribution Panel
  • Qty: 5 – 6 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Negative Wire From Busbar to Power Distribution Panel
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Alternator Charging
  • Qty: – LI-BIM 225 Isolator
    • Connects and Disconnects House and Starting Battery Banks
  • Qty: 5 – 2/0 Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between LI-BIM 225 Isolator & Start Battery
  • Qty: 20 – 2/0 Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between LI-BIM 225 Isolator & House Battery Bank
  • Qty: 1 – 250 Amp Terminal Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Starting Battery Protecting Red Wire to LI-BIM 225 Isolator
  • Qty: 1 – 250 Amp ANL Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Positive Busbar Protecting Red Wire to LI-BIM 225 Isolator
  • Qty: 1 – ANL Fuse Holder
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Mounted to Busbar under each ANL fuse
  • Qty: 4 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Positive Wire to Starting Battery, Isolator x2, & House Battery Bank
  • Qty: 5 – 16 AWG Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Isolator Ign to Ignition Positive
  • Qty: 1 – Add-a-Fuse Kit
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Used to piggyback power for Ignition+ Wire
  • Qty: 5 – 16 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Isolator Gnd to Chassis Ground
  • Qty: 10 – 16 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Isolator Sig to Momentary Switch & from Momentary Switch to Chassis Ground
  • Qty: 1 – Momentary Switch
    • Placed in-line on Isolator Sig Wire
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Misc Tools & Accessories (As Needed/Optional)
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Wires, Lugs, Breakers, and Fuses

Wires
Add Wires Individually to Verify Quantities

Lugs
Add Lugs Individually to Verify Quantities

Fuses & Breakers
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Free Camping near Mammoth Mountain
Previous
Sprinter Camper Van Roof Rack Options
Next
600 Amp Hour - 1050 Watt Camper Van Solar Kit


Chris F.

Monday 28th of September 2020

Nate, I am building a Skoolie and have researched different solar setups. In the process, I found your channel, and website. I am currently considering your 1200w solar setup. My question is, will this setup support a future upgrade to 1600w? I plan on using Rich Solar 200w 12v Monocrystalline for all my panels. https://www.amazon.com/dp/B0851RPM1Q/coliid=I3H16X7CHY17N6&colid=1WVWEBVX4JO90&psc=1&ref_=lv_ov_lig_dp_it Thank you for your time. I look forward to your response.

Nate Yarbrough

Tuesday 29th of September 2020

A 100A charge controller like the Victron SmartSolar MPPT 150|100 is rated for a max of 1450w of power when pushed into a 12v battery bank. For 1600w; you may consider a dual charge controller set up.

Daniel Farina

Thursday 9th of July 2020

Hey Nate,

So to fix the issues with the broken diagrams partially: Look for leaflet-zoom-animated in the code something like: <svg pointer-events="none" class="leaflet-zoom-animated" width="1120" height="1844" replace width 1120 and height 1844 with 1035 and 1720 That does fix the tool tip position but at least it fixes the hovers.... I could probably fix the all the code, reach out to me via email if you need help.

MikeJ

Monday 1st of June 2020

Just a heads up. Your 30 amp RV shore power cord should NOT have male connections on both ends. Oops. 30 amp shore outlet should be male with the corresponding cord end female.

Nate Yarbrough

Sunday 21st of June 2020

That's just in the illustration to show what the item is. A cord with a male connection on each side doesn't exist. Check the shore power cord in the parts list on the page to see what the actual cord looks like.

Greg

Wednesday 26th of February 2020

Hello and thank you so much for your videos, diagrams and all that. I am looking at this wiring diagram because I have 4 x 330 watt panels... If ny panels are in 2 string of 2 panels, do I have to use that big of a Charge controller?

Nate Yarbrough

Thursday 5th of March 2020

I have a solar charge controller calculator that will help you answer your own question: https://www.explorist.life/solar-charge-controller-calculator/

...and a tutorial on how to use it: https://www.youtube.com/watch?v=MxziHKvTRh8

But... Wired like that, and without knowing your specific panel specs, I'd bet you could likely get away with using the Victron Smartsolar MPPT 150/100 instead of the 250/100

Larry

Wednesday 5th of February 2020

If using a 3000 watt inverter/charger, what WOULD the fuse sizes be?

Nate Yarbrough

Thursday 5th of March 2020

check here: https://www.explorist.life/3000w-inverter-400-600ah-400-to-1200w-solar-camper-solar-kit/
