300 Amp Hour – 300 Watt Camper Van Solar Kit

This DIY Camper Van Solar Kit features 300 watts of solar (3x100w Panels) and 300 Amp Hours of Lithium Batteries wired into a 12v battery bank. It also features a 2000w Inverter/Charger and alternator charging by way of a battery isolator.

THERE IS AN UPDATE TO THIS WIRING DIAGRAM THAT INCLUDES A DC-DC CHARGER AND A BUSBAR SYSTEM THAT DOES NOT REQUIRE CUTTING & DRILLING OF COPPER BAR. HERE IS THE LINK FOR THAT: https://www.explorist.life/2000w-inverter-200-400ah-lithium-200-to-700w-solar-camper-wiring-diagram/

Looking for a different size of system? Check here: https://www.explorist.life/solarwiringdiagrams

Not sure how big of a system you need? You need to do a power audit. Here’s a tutorial: https://www.explorist.life/what-size-of-solar-system-is-needed-to-power-a-camper/

Want more solar education in general? Check this: https://www.explorist.life/diy-campervan-solar

Want a high-resolution wiring diagram to print out? Get it here: COMING SOON

Here is a video that shows how this page works:

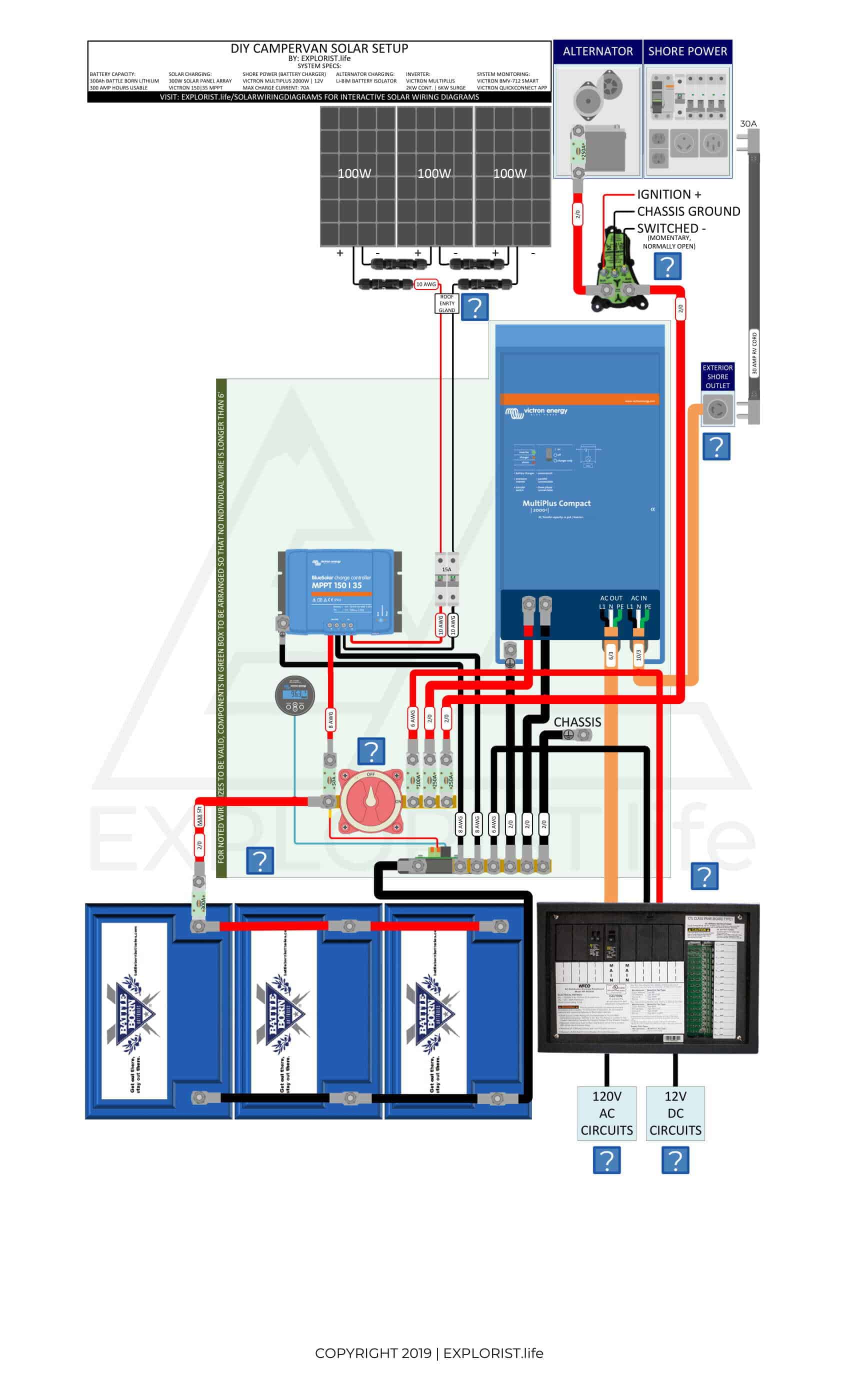

300Ah Lithium Battery Bank – 3x100W Solar – 2kW Inverter/Charger – Li-BIM Alternator Charging
EXPLORIST.life / Battle Born Solar Bundle [Affiliate Link] 100W Solar Panels [Affiliate Link] 50A ANL Fuse [Affiliate Link] Roof Entry Gland [Affiliate Link] 100A ANL Fuse [Affiliate Link] 250A ANL Fuse [Affiliate Link] 250A ANL Fuse [Affiliate Link] 15A Solar Disconnect [Affiliate Link] Master Battery Disconnect Switch [Affiliate Link] Exterior Shore Power Outlet [Affiliate Link] 250A Terminal Fuse [Affiliate Link] 300A Terminal Fuse [Affiliate Link] 30 A Shore Power Cord [Affiliate Link] 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 2/0 x 5/16 Wire Lug 8 AWG x 5/16 Wire Lug 6 AWG x 5/16 Wire Lug 8 AWG x 5/16 Wire Lug 8 AWG x 5/16 Wire Lug 6 AWG x 5/16 Wire Lug 8 AWG x 5/16 Wire Lug Tutorial: How to Wire the Li-BIM Battery Isolator Tutorial: How to Wire the AC Side of Your Electrical System Tutorial: How to Wire for Shore Power Tutorial: How to Wire a Battery Bank Tutorial: How to Wire a Busbar Tutorial: How To Wire DC Distribution Block & Accessories Tutorial: How to wire a power distribution panel

EXPLORIST.life / Battle Born Solar Bundle [Affiliate Link]

Battery, Inverter, Charge Controller, Battery Monitor Discount Bundle Coming June 1.

100W Solar Panels [Affiliate Link]

50A ANL Fuse [Affiliate Link]

Roof Entry Gland [Affiliate Link]

100A ANL Fuse [Affiliate Link]

250A ANL Fuse [Affiliate Link]

250A ANL Fuse [Affiliate Link]

15A Solar Disconnect [Affiliate Link]

Master Battery Disconnect Switch [Affiliate Link]

Exterior Shore Power Outlet [Affiliate Link]

250A Terminal Fuse [Affiliate Link]

300A Terminal Fuse [Affiliate Link]

30 A Shore Power Cord [Affiliate Link]

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

2/0 x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

8 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

6 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

8 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

8 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

6 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

8 AWG x 5/16 Wire Lug

Total wire lug quantities for this wiring diagram are totaled at the bottom of the shopping list below.

Tutorial: How to Wire the Li-BIM Battery Isolator

Tutorial: How to Wire the AC Side of Your Electrical System

Tutorial: How to Wire for Shore Power

Tutorial: How to Wire a Battery Bank

Tutorial: How to Wire a Busbar

Tutorial: How To Wire DC Distribution Block & Accessories

Tutorial: How to wire a power distribution panel

IMPORTANT!!! This diagram is, indeed, pretty detailed. YOU MUST STILL READ AND FOLLOW YOUR USER/INSTALLATION MANUAL WHEN INSTALLING THIS EQUIPMENT. In case of an error in the diagram above, your user manual will always superscede the diagram you see on this page.

Known issues with the diagram above:

  • The shunt in the diagram is backwards. On the side of the shunt, there is a label that says which side goes to the battery and which side goes to the load. Please follow the orientation on the side of the shunt.
  • The shore power cord has a male plug on both ends. Shore power extension cords do not have male plugs on each end. This would be incredibly dangerous. Please do not splice a shore power cord so there is a male on each end. The shore power cord in the parts list below is accurate and has a male end on one side and a female end on the other.
EXPLORIST.life Battery, Charge Controller, Inverter Bundle
Solar Charging System:
  • Qty: 3 – 100 Watt Solar Panel
    • Put these in the sun
  • Qty: 3 – Solar Panel Mounting Feet
    • Help mount solar panels to the roof
  • Qty: 1 – MC4 Connectors
    • Connecting Solar Panels to Wires going to Charge Controller
  • Qty: 40 – 10 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Solar Panel to Charge Controller
  • Qty: 40 – 10 AWG Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Solar Panel to Charge Controller
  • Qty: 1 – Roof Entry Gland
    • Waterproof Box for Running Wires through Roof
  • Qty: 1 – 1″ Wire Grommet
    • Mounted in roof under Roof Entry Gland
  • Qty: 1 – 15 Amp Solar Disconnect Switch
    • Mounted on Din Rail Between Solar Panels & Solar Contoller
  • Qty: 1 – Din Rail
    • To mount the Solar Disconnect Switch
  • Qty: 1 – Victron Smartsolar MPPT 150 | 35 – Bundle
    • Included in Bundle at Top of List
    • Solar Charge Controller
  • Qty: 5 – 8 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Charge Controller to Busbar
  • Qty: 5 – 8 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Charge Controller Equipment Ground
  • Qty: 5 – 8 AWG Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Charge Controller to Busbar
  • Qty: 2 – 5/16″ x 8 AWG Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Positive & Negative Wires from Charge Controller to Busbar
  • Qty: 2 – 5/16″ x 8 AWG Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Connecting Busbar to Charge Controller Equipment Ground
  • Qty: 1 – 50 Amp ANL Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Positive Busbar Protecting Red Wire to Charge Controller
  • Qty: 1 – ANL Fuse Holder
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Mounted to Busbar under each ANL fuse
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Battery Bank, Busbar, & Inverter
  • Qty: 1 – 2000W Victron MultiPlus Compact Inverter Charger 12V – Bundle
    • Included in Bundle at Top of List
    • This Converts Your 12v DC Power to 120v AC Power
  • Qty: 1 – 300Ah Battle Born Lithium Battery Bundle
    • Included in Bundle at Top of List
    • These Store Your Power
  • Qty: 5 – 2/0 Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Batteries & From Batteries to Busbar
  • Qty: 5 – 2/0 Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Batteries & From Batteries to Busbar
  • Qty: 12 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Wires to Batteries & to Busbar
  • Qty: 1 – 300 Amp Terminal Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attached to Battery Protecting Red Wire to Busbar
  • Qty: 5 – 2/0 Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Inverter
  • Qty: 5 – 2/0 Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Inverter
  • Qty: 5 – 2/0 Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Inverter Equipment Ground
  • Qty: 5 – 2/0 Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between Busbar & Chassis Ground
  • Qty: 2 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Positive Wire from Busbar to Inverter
  • Qty: 2 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Negative Wire from Busbar to Inverter
  • Qty: 2 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Black Wire from Negative Busbar to Inverter Equipment Ground
  • Qty: 2 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Black Wire from Negative Busbar to Vehicle Chassis Ground
  • Qty: 1 – 250 Amp ANL Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Positive Busbar Protecting Red Wire to Inverter
  • Qty: 1 – ANL Fuse Holder
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Mounted to Busbar under each ANL fuse
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

DC Busbar
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

AC Circuits & Shore Power
  • Qty: 1 – 30 Amp Shore Power Cord
    • Connecting 30A Flanged Power Inlet to Shore Power
  • Qty: 1 – 30 Amp Shore Power Extension Cord
    • If your Shore Power Cord is too Short
  • Qty: 1 – 30A to 15A Adapter
    • For plugging your 30A shore power cord into a 15/20 amp standard outlet.
  • Qty: 1 – 30A Flanged Power Inlet
    • Connected to Outside of Camper
  • Qty: 10 – 10 AWG 3 Conductor Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From 30A Flanged Power Inlet to Inverter
  • Qty: 5 – 6 AWG 3 Conductor Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Inverter to Power Distribution Panel
  • Qty: 1 – Power Distribution Panel
    • For Distributing Power & Housing Breakers/Fuses
  • Qty: 1 – 50A AC Breaker
    • Check Wire, Lug, and Fuse List at Bottom of List
    • For AC Branch Circuits
  • Qty: 1 – 20A HOMT Tandem AC Breaker
    • Check Wire, Lug, and Fuse List at Bottom of List
    • For Standard 120V Outlet Circuits
  • Qty: 1 – 20A / 30A HOMT Tandem AC Breaker
    • Check Wire, Lug, and Fuse List at Bottom of List
    • For Circuits that include large loads (hot water heater)
  • Qty: 50 – 12 AWG 3 Conductor Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • For AC Branch Circuits
  • Qty: 6 – 120V GFCI Outlet
    • For plugging 120V Appliances into
  • Qty: 6 – Single Gang Electrical Box
    • For 120V GFCI Outlet
  • Qty: 6 – GFCI Wall Plates
    • For 120V GFCI Outlet
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

12v Distribution
  • Qty: 1 – Power Distribution Panel
    • For Distributing Power & Housing Breakers/Fuses
  • Qty: 1 – 100 AMP ANL Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Positive Busbar Protecting Red Wire to the Power Distribution Panel
  • Qty: 1 – ANL Fuse Holder
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Mounted to Busbar under each ANL fuse
  • Qty: 2 – 5/16″ x 6 AWG Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Positive & Negatives Wires to the Busbar from the Power Distribution Panel
  • Qty: 5 – 6 AWG Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Positive Wire From Busbar to Power Distribution Panel
  • Qty: 5 – 6 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Negative Wire From Busbar to Power Distribution Panel
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Alternator Charging
  • Qty: – LI-BIM 225 Isolator
    • Connects and Disconnects House and Starting Battery Banks
  • Qty: 5 – 2/0 Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between LI-BIM 225 Isolator & Start Battery
  • Qty: 20 – 2/0 Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Between LI-BIM 225 Isolator & House Battery Bank
  • Qty: 1 – 250 Amp Terminal Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Starting Battery Protecting Red Wire to LI-BIM 225 Isolator
  • Qty: 1 – 250 Amp ANL Fuse
    • Check Wire, Lug, and Fuse List at Bottom of List
    • On Positive Busbar Protecting Red Wire to LI-BIM 225 Isolator
  • Qty: 1 – ANL Fuse Holder
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Mounted to Busbar under each ANL fuse
  • Qty: 4 – 5/16″ x 2/0 Lug
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Attaching Positive Wire to Starting Battery, Isolator x2, & House Battery Bank
  • Qty: 5 – 16 AWG Red Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Isolator Ign to Ignition Positive
  • Qty: 1 – Add-a-Fuse Kit
    • Check Wire, Lug, and Fuse List at Bottom of List
    • Used to piggyback power for Ignition+ Wire
  • Qty: 5 – 16 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Isolator Gnd to Chassis Ground
  • Qty: 10 – 16 AWG Black Wire
    • Check Wire, Lug, and Fuse List at Bottom of List
    • From Isolator Sig to Momentary Switch & from Momentary Switch to Chassis Ground
  • Qty: 1 – Momentary Switch
    • Placed in-line on Isolator Sig Wire
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Misc Tools & Accessories (As Needed/Optional)
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Wires, Lugs, Breakers, and Fuses

Wires
Add Wires Individually to Verify Quantities

Lugs
Add Lugs Individually to Verify Quantities

Fuses & Breakers
CLICK HERE TO ADD ALL AMAZON PRODUCTS TO AMAZON CART

Previous
400 Amp Hour - 350 Watt Camper Van Solar Kit
Next
200 Amp Hour - 350 Watt Camper Van Solar Kit


Warren Grant

Thursday 29th of October 2020

Hi Explorist, I have been given you web site by Mike (Caravan Plus) who said you may be able to direct me the right way to put Solar on my 22 ft caravan. I am planning a long trip next year and am trying to prepare properly in order to cover free camping along the way. What do you run of the supply – fridge, tv, lights – the lot at once or some at a time… My questions are: • What size solar panels do I need eg: 100w, 300 w or more etc. 2 or one panel units with some spare capacity ? • Do I need to fit a second battery to the van as well. I currently have two batteries in the Landcruiser • What brands do you recommend to consider • Who installs them * What size regulator should I used 20A, 30A or 60A • How much would system cost • Did the units come with all the attachments • What items have I missed • What would you recommend. • Any other issues you would like to mention

I am not a handyman and hope you can advise me. regards, Warren Grant

Eileen Flesher

Saturday 24th of October 2020

How did you determine the fuse size for the distribution box?

Nate Yarbrough

Monday 26th of October 2020

Although this 12v fuse block does not specifically list a maximum Amperage rating... Blue Sea 12v fuse blocks are rated to 100A of power. And since this panel can accept 6 AWG wire, that fuse size is consistant with that wire size for wire with 105 degree insulation and that is what the fuse size for the 12v DC side of this panel is rated for.

Bret Ebey

Saturday 12th of September 2020

I'm trying to understand why you have 6/3 coming out of the inverter and into the load distribution box,which would be a much smaller possible load (20 amps or so?), and 10/3 coming from shore power into the inverter, which would carry up to 30amps. It seems like you would want the larger wire coming from shore power. What am I missing here?

Nate Yarbrough

Sunday 13th of September 2020

Sure! That's to handle the 'PowerAssist' function of the Victron Multiplus. Shore power is coming in at up-to 30A, which requires 10/3 wire. Now... lets say you are running the air conditioner, space heater, and trying to brew a pot of coffee; all of which equals more than 30 amps. The PowerAssist function in the Victron Multiplus Inverter/Charger will 'Add' power to an underperforming shore power connection by supplementing the shore power with battery power as needed. So, if we have a 2000w Inverter like in this diagram, that means we could have (2000w/120v=16A) 16A added to our 30A shore power for a total of 46A of available potential heading to our power distribution box. This requires 6/3 wire protected by a 50A breaker.

Scott Shuler

Saturday 27th of June 2020

Hi Nate, I do not see the 250 AMP or 300 AMP Terminal Fuse listed in your wiring diagram. Would you let me know if needed, and if so where to apply in the diagram? Your work on this site and accompanying videos are extremely helpful! Scott

Nate Yarbrough

Sunday 5th of July 2020

250A terminal fuse is attached to the starting battery. 300A is attached to the house battery bank.

Mark Calegari

Wednesday 24th of June 2020

Thanks for your work with all the solar diagrams and YouTube videos. Can I simply plug a 3000 watt inverter in place of the 2000 watt and use all the same fuses and wire gauges? Thanks, Mark

Nate Yarbrough

Sunday 5th of July 2020

Nope. Wires and fuses need to be larger. Here is a diagram that shows a 3000w inverter: https://www.explorist.life/3000w-inverter-400-600ah-400-to-1200w-solar-camper-solar-kit/
